2005-2020 Nissan Frontier Full Suspension Lift Kit & Shims 2WD 4WD

Product Number: A6198

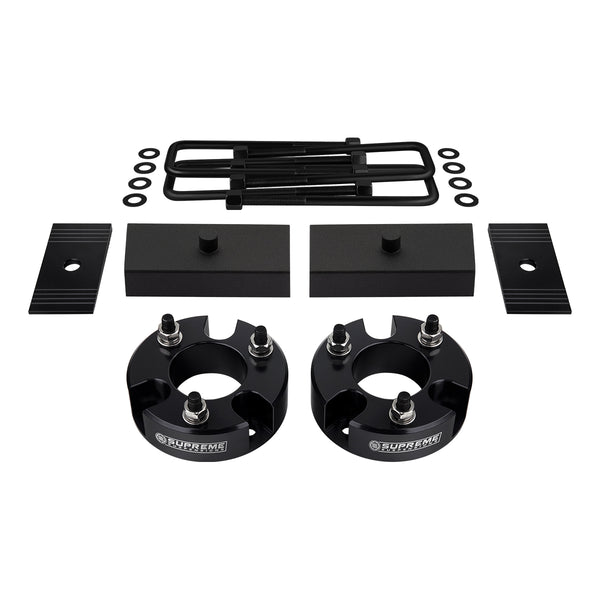

Description:

  • 2x Front Billet Lift Spacers
  • 2x Rear Billet Lift Blocks
  • 4x Zinc Plated U-bolts
  • 2x Pinion Alignment Shims
  • Installation Instructions


Supreme Suspensions PRO-Billet Lift Kits are precision CNC machined from T6 Aircraft Aluminum, then anodized black for a superior corrosion resistant finish. The SOLID single-piece construction ensures extreme compression resistance, while still being light-weight and resistant to typical corrosion associated with off-roading.

We've also made sure the extended U-bolts we provide rise to expectation, being ISO 9001 certified and stamped. A zinc phosphate coating is applied to them which is 5 times more corrosion resistant than typical zinc plating in accordance with ASTM B117 testing. Zinc phosphate coating is a multi-phase process commonly used in military applications for components in harsh environments and extreme weather conditions. In addition to the superior corrosion resistance, the zinc phosphate coating process requires less heat, helping to maintain the original heat treatment and hardness of the material.

To complete this Lift Kit we have included a set of shims, specially engineered to help correct the pinion angle of your vehicle back to factory specifications. An incorrect pinion angle can cause drive line vibrations when driving at speeds, and will severely shorten the lifespan of the differential pinion bearing. CNC machined from T6 Aircraft Aluminum, these are designed to never compress or change angle. They are also manufactured with provisions for center axle alignment pins, and utilize raised grip steps to help keep all components secured in place.

NOTES:
*PRO4x model will NOT fit 3" or 3.5" front spacer.
*Rear kit will work only for models with Spring Over Axle Suspension Setup.
*Factory 1/2" u-bolts are being replaced with upgraded 9/16" u-bolts which requires enlarging retainer plate holes.

An alignment is always recommended after altering the height of your vehicle.
