Supreme Suspensions Tire Sizing Guide

One of the added benefits of installing a lift kit is the ability to install larger tires for your vehicle. Use the tools on this page as a reference to help guide you. Knowing the available options and dimensions of tires will make it easier to decide what tires to pair with your Supreme Suspensions® Lift Kit.

Our Tire Size Calculator will allow you to figure out the dimensions of a tire such as Diameter, width, and sidewall. Use the comparison tool to compare your stock tire to one you are interested in upgrading to.

We have also included a Speedometer variance so you can see how the speedometer reading will differ depending on the tire difference. Speedometers are calibrated based on your stock tires' circumference and records the revolutions that your stock tires make. When you add new tires that have a larger or smaller circumference than the stock tires, the reading will vary from your actual speed. This is important because you don't want to think you are going the speed limit but in face are going much faster.

Tire Size Calculator/Comparison You can use this to find out and compare the measurements on your tires. Tire Size Example: P265/75R16 = P Tire Width / Aspect Ratio R Wheel Diameter

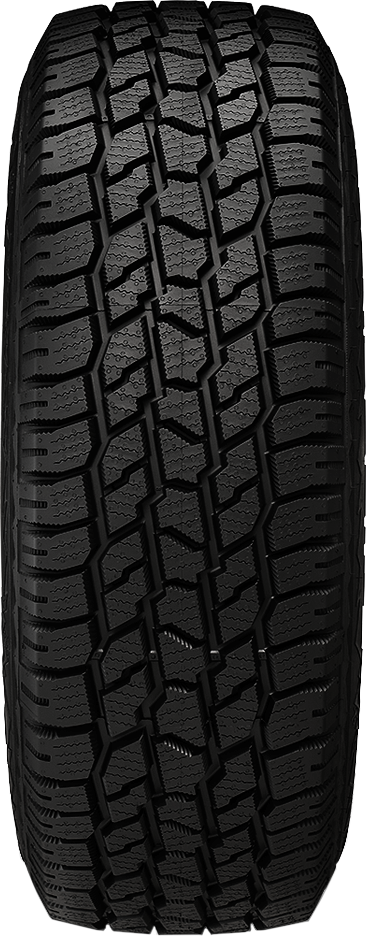

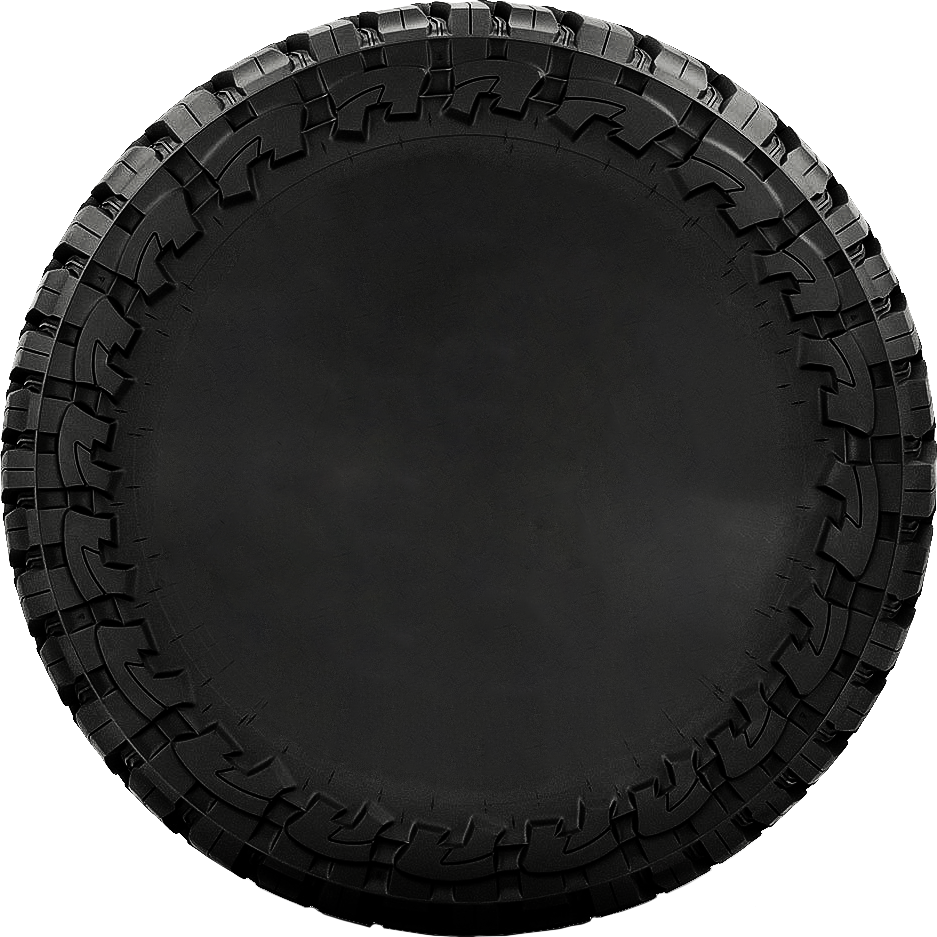

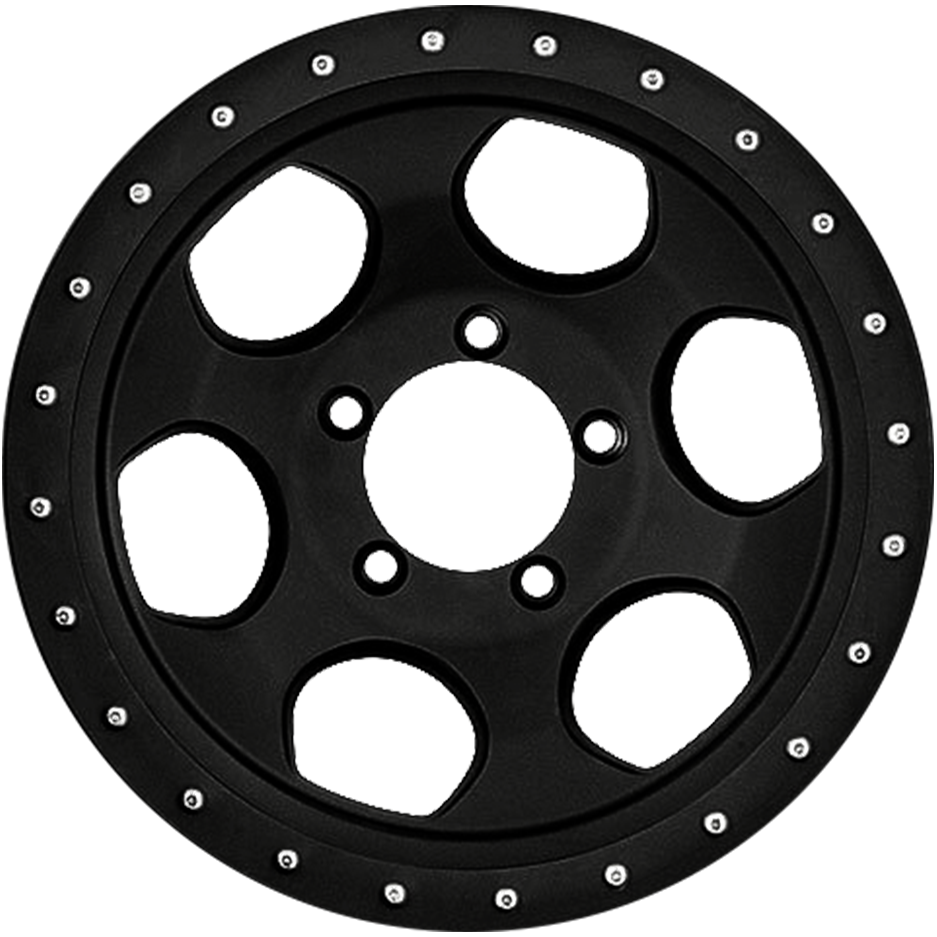

Tire Size Visualizer

Tire 1

Tire 2

Tire 1

Tire 2

Speedometer Variance
Reading
Actual
20 mph
24
30 mph
36
40 mph
48
50 mph
61
60 mph
73
70 mph
85
80 mph
97
90 mph
109
Tire Size Reference Chart

You can use this tire size reference chart to see what tire diameter and wheel sizes combinations are generally available. Choose the diameter to see available options.

30" Diameter Tire Chart
15" Wheel Sizes 255/75R15 (30.1x10) 265/75R15 (30.6x10.4) 295/65R15 (30.1x11.6) 30X7R15 30X9R15 30X9.5R15 30X10R15 30X10.5R15 30X11.5R15 30X12.5R15 30X13.5R15
16" Wheel Sizes 215/85R16 (30.4x8.5) 235/80R16 (30.8x9.3) 245/75R16 (30.5x9.6) 255/70R16 (30.1x10) 265/70R16 (30.6x10.4) 285/65R16 (30.6X11.2) 30X11.5R16
17" Wheel Sizes 225/75R17 (30.3x8.9) 235/70R17 (30x9.3) 235/75R17 (30.9x9.3) 245/70R17 (30.5x9.6) 255/65R17 (30.1x10) 265/65R17 (30.6x10.4) 275/60R17 (30x10.8) 285/60R17 (30.5X11.2)
18" Wheel Sizes 175/90R18 (30.4X6.9) 235/65R18 (30x9.3) 245/65R18 (30.5x9.6) 255/60R18 (30x10) 265/60R18 (30.5x10.4) 285/55R18 (30.3x11.2)
20" Wheel Sizes 235/55R20 (30.2x9.3) 255/50R20 (30x10) 265/50R20 (30.4x10.4) 275/50R20 (30.8x10.8) 285/45R20 (30.1X11.2) 295/45R20 (30.5x11.6) 305/45R20 (30.8x12)
22" Wheel Sizes 255/40R22 (30X10) 265/40R22 (30.3x10.4) 275/40R22 (30.7x10.8) 295/35R22 (30.1X11.6) 305/35R22 (30.4X12) 315/35R22 (30.7X12.4)
24" Wheel Sizes 255/30R24 (30x10) 275/30R24 (30.5x10.8) 285/30R24 (30.7x11.2)
31" Diameter Tire Chart
15" Wheel Sizes 31X9.5R15 31X10.5R15 31X11R15 31X11.5R15 31X12.5R15 31X13R15 31X13.5R15 31X14.5R15 31X16.5R15 31X18R15 31X18.5R15
16" Wheel Sizes 225/85R16 (31.1X8.9) 235/85R16 (31.7x9.3) 265/75R16 (31.6x10.4) 275/70R16 (31.2x10.8) 285/70R16 (31.7x11.2) 31X10.5R16 31X11R16 31X11.5R16 31X12.5R16
17" Wheel Sizes 235/80R17 (31.8x9.3) 245/75R17 (31.5x9.6) 255/70R17 (31.1x10) 265/70R17 (31.6x10.4) 275/65R17 (31.1x10.8) 285/65R17 (31.6x11.2) 31X10.5)
18" Wheel Sizes 235/70R18 (31X9.3) 255/65R18 (31.1x10) 265/65R18 (31.6x10.4) 275/60R18 (31x10.8) 285/60R18 (31.5x11.2)
20" Wheel Sizes 245/60R20 (31.6x9.6) 255/55R20 (31x10) 275/55R20 (31.9x10.8) 285/50R20 (31.2x11.2) 295/50R20 (31.6x11.6) 31X18R20
22" Wheel Sizes 255/45R22 (31X10) 265/45R22 (31.4X10.4) 275/45R22 (31.7x10.8) 285/40R22 (31x11.2) 295/40R22 (31.3x11.6) 305/40R22 (31.6x12) 325/35R22 (31X12.8)
24" Wheel Sizes 285/35R24 (31.9x11.2) 295/30R24 (31X11.6)
26" Wheel Sizes 275/25R26 (31.4x10.8) 295/25R26 (31.8x11.6)
32" Diameter Tire Chart
15" Wheel Sizes 32X9.5R15 32X10.5R15 32X11.5R15 32X14R15 32X16R15 32X17.5R15 32X18.5R15
16" Wheel Sizes 265/80R16 (32.7X10.4) 285/75R16 (32.8x11.2) 305/70R16 (32.8x12) 32X9R16 32X10R16 32X11.5R16
17" Wheel Sizes 235/85R17 (32.7X9.3) 255/75R17 (32.1x10) 275/70R17 (32.2x10.8) 285/70R17 (32.7x11.2) 305/65R17 (32.6x12) 32X10.5R17 32X11.5R17
18" Wheel Sizes 255/70R18 (32.1x10) 265/70R18 (32.6x10.4) 275/65R18 (32.1x10.8) 285/65R18 (32.6x11.2) 305/60R18 (32.4x12)
20" Wheel Sizes 265/60R20 (32.5x10.4) 285/55R20 (32.3x11.2) 295/55R20 (32.8X11.6) 305/50R20 (32x12) 315/50R20 (32.4x12.4) 325/50R20 (32.8x12.8)
22" Wheel Sizes 275/50R22 (32.8x10.8) 285/45R22 (32.1x11.2) 305/45R22 (32.8x12)
24" Wheel Sizes 295/35R24 = 32.1x11.6R24 305/35R24 = 32.4x12R24 315/35R24 = 32.7x12.4R24 405/25R24 = 32x15.9R24
33" Diameter Tire Chart
15" Wheel Sizes 33X9R15 33X9.5R15 33X10.5R15 33X11.5R15 33X12.5R15 33X13R15 33X13.5R15 33X14R15 33X14.5R15 33X15.5R15 33X16.5R15 33X19.5R15 33X21.5R15
16" Wheel Sizes 255/85R16 (33.1x10) 295/75R16 (33.4x11.6) 33X9.5R16 33X10.5R16 33X11.5R16 33X12.5R16 33X13R16 33X13.5R16 33X14R16 33X14.5R16 33.5X16.5R16
17" Wheel Sizes 255/80R17 (33.1x10) 285/75R17 (33.8x11.2) 295/70R17 (33.3x11.6) 305/70R17 (3.8x12) 33X9.5R17 33X10.5R17 33X12.5R17 33X13R17
18" Wheel Sizes 275/70R18 (33.2x10.8) 285/70R18 (33.7x11.2) 295/65R18 (33.1x11.6) 305/65R18 (33.6x12) 325/60R18 (33.4x12.8) 33X10.5R18 33X11.5R18 33X12.5R18 33X13R18 33X13.5R18
20" Wheel Sizes 275/60R20 (33x10.8) 285/60R20 (33.5x11.2) 295/60R20 (33.9X11.6) 305/55R20 (33.2x12) 33X11.5R20 33X12R20 33X12.5R20 33X13.5R20
22" Wheel Sizes 285/50R22 (33.2x11.2) 355/40R22 (33.2X14) 33X12.5R22 33X14.5R22
24" Wheel Sizes 285/40R24 (33x11.2) 295/40R24 (33.3x11.6)
26" Wheel Sizes 295/30R26 (33x11.6) 305/30R26 (33.2x12)
34" Diameter Tire Chart
15" Wheel Sizes 34X9.5R15 34X10.5R15 34X12.5R15
16" Wheel Sizes 315/75R16 (34.6x12.4) 34X9R16 34X10.5R16 34X12.5R16 34X13.5R16 34.5X17R16
17" Wheel Sizes 275/80R17 (34.3X10.8) 315/70R17 (34.4x12.4) 325/70R17 (34.9x12.8) 34X10.5R17
18" Wheel Sizes 285/75R18 (34.8x11.2) 295/70R18 (34.3X11.6) 305/70R18 (34.8x12) 325/65R18 (34.6x12.8) 34X12.5R18
20" Wheel Sizes 275/65R20 (34.1x10.8) 285/65R20 (34.6x11.2) 305/60R20 (34.4x12) 315/60R20 (34.9x12.4) 355/50R20 (34X14)
22" Wheel Sizes 285/55R22 (34.3X11.2) 295/55R22 (34.8X11.6) 295/55R22 (34.8X11.6) 325/50R22 (34.8x12.8)
24" Wheel Sizes 385/35R24 (34.6x15.2)
35" Diameter Tire Chart
15" Wheel Sizes 35X10.5R15 35X12.5R15 35X13.5R15 35X14.5R15 35X15R15 35X15.5R15 35X16R15
16" Wheel Sizes 375/65R16 (35.2x14.8) 35X10.5R16 35X12.5R16 35X14.5R16 35X15R16 35X16R16
17" Wheel Sizes 35X10.5R17 35X11.5R17 35X12.5R17 35X13.5R17 35X14.5R17
18" Wheel Sizes 315/70R18 (5.4x12.4) 35X11.5R18 35X12.5R18 35X12.5R18 35X13.5R18 35X14.5R18
20" Wheel Sizes 295/65R20 (35.1X11.6) 325/60R20 (35.4x12.8) 35X11.5R20 35X12.5R20 35X13R20 35X13.5R20 35X14.5R20
22" Wheel Sizes 375/45R22 (35.3X14.8) 35X12.5R22 35X14.5R22 35X15.5R22
24" Wheel Sizes 325/45R24 (35.5x12.8) 375/40R24 (35.8X14.8) 35X12.5R24 35X13.5R24
24" Wheel Sizes 315/40R26 (5.9x12.4)
36" Diameter Tire Chart
15" Wheel Sizes 36X12.5R15 36X13.5R15 36X14.5R15
16" Wheel Sizes 325/80R16 (6.5x12.8) 345/75R16 (36.4x13.6) 36X12.5R16 36X13R16 36X13.5R16 36X14.5R16
17" Wheel Sizes 355/70R17 (6.6x14) 36X12.5R17 36X13.5R17
18" Wheel Sizes 355/65R18 (36.2x14) 36X13.5R18
20" Wheel Sizes 355/60R20 (36.8x14) 36X13.5R20 36X15.5R20
22" Wheel Sizes 325/55R22 (36.1x12.8) 335/55R22 (36.5X13.2)
24" Wheel Sizes 315/50R24 (36.4X12.4)
37" Diameter Tire Chart
15" Wheel Sizes 37X12.5R15 37X13R15 37X13.5R15 37X14R15 37X14.5R15
16" Wheel Sizes 365/75R16 (37.6x14.4) 385/70R16 (37.2x15.2) 395/70R16 (7.8x15.6) 37X12.5R16 37X13R16 37X13.5R16 37X14R16 37X14.5R16
17" Wheel Sizes 37X12.5R17 37X13R17 37X13.5R17 37X14R17
18" Wheel Sizes 37X11.5R18 37X12.5R18 37X13.5R18
20" Wheel Sizes 37X11.5R20 37X12.5R20 37X13.5R20 37X14.5R20
22" Wheel Sizes 325/60R22 (37.4x12.8) 37X12.5R22 37X13.5R22
24" Wheel Sizes 37X13.5R24 37X14.5R24
26" Wheel Sizes 37X13.5R26
38" Diameter Tire Chart
15" Wheel Sizes 38X12.5R15 38X13R15 38X14.5R15 38X15.5R15 38.5X11R15 38.5X13.5R15 38.5X14.5R15 38.5X15R15 38.5X16R15
16" Wheel Sizes 38X13R16 38X14.5R16 38X15.5R16 38.5X11R16 38.5X13.5R16 38.5X14.5R16 38.5X15R16
17" Wheel Sizes 38X13.5R17 38X14.5R17 38X15.5R17 38.5X13.5R17 38.5X14.5R17
18" Wheel Sizes 38X13.5R18 38X14.5R18 38X15R18 38X15.5R18 38.5X14.5R18
20" Wheel Sizes 38X13.5R20 38X14.5R20 38X15.5R20 38.5X13.5R20 38.5X14.5R20
22" Wheel Sizes 355/60R22 (38.8x14) 38X13.5R22 38X15.5R22
24" Wheel Sizes 38X13.5R24 38X14R24 38X15.5R24
26" Wheel Sizes 38X15.5R26
39" Diameter Tire Chart
15" Wheel Sizes 39X13.5R15 39.5X13.5R15 39.5X15R15 39.5X18R15
16" Wheel Sizes 39X13.5R16 39.5X13.5R16 39.5X15R16
17" Wheel Sizes 39X13.5R17 39.5X13.5R17 39.5X15R17
20" Wheel Sizes 39X13.5R20 39.5X13.5R20 39.5X15R20
40" Diameter Tire Chart
15" Wheel Sizes 40X16R15
16" Wheel Sizes 40X16R16
17" Wheel Sizes 40X13.5R17 40X14.5R17 40X16R17
18" Wheel Sizes 40X13.5R18 40X14.5R18
20" Wheel Sizes 40X13.5R20 40X14.5R20 40X15.5R20
22" Wheel Sizes 40X14.5R22 40X15.5R22
24" Wheel Sizes 40X13.5R24 40X14.5R24 40X15.5R24
26" Wheel Sizes 40X13.5R26 40X15.5R26
Lift & Tire Size Reference Chart

This tire size to lift chart is meant to be used as a reference guide for tire fitments. The maximum tire sizes for lift kits are listed are based on the max lift that we offer for the model year. All vehicles are slightly different, and all tires are slightly different in actual advertised sizes and design. Supreme Suspensions is not responsible for the installation of tires that rub or do not fit due to a wide range of diverse variances that can occur from vehicle to vehicle and tire to tire. This guide is not meant to provide recommended tire sizes for lift kits but rather the Maximum tire that will fit under most circumstances. This lift kit tire size chart is to be used strictly as a REFERENCE.

Due to actual lift heights and variances in tire sizes from various manufacturers, IT IS THE CONSUMER'S RESPONSIBILITY TO TEST FIT BEFORE PURCHASING WHEELS AND TIRES. SUPREME SUSPENSIONS cannot be held responsible for any cost of wheels and tires.

* Will fit factory tires. (Ford Superduty models, inside edge of tire will rub on the radius arm on full turn.) ** May require minor fender well trimming.

(C)=Classic (N)=New

MODEL YEARS DRIVETRAIN FRONT LIFT FULL LIFT FULL + BODY LIFT
Cadillac
ESCALADE / EXT / ESV 2002 – 2006 2WD/4WD 6-LUG 32" 33"** 33"
ESCALADE / EXT / ESV 2007 – 2016 2WD/4WD 6-LUG 32" 33"** 33"
Chevy
C1500 1988 – 1998 2WD 31" 32" 32"
K1500 1988 – 1999 4WD 31" 32" 32"
SILVERADO 1500 1999 – 2007(C) 2WD 32" 33"** 33"
SILVERADO 1500 1999 – 2007(C) 4WD 6-LUG 32" 33"** 33"
SILVERADO 1500 2007(N) – 2023 2WD/4WD 6-LUG 32" 33" 33"
SILVERADO 1500HD 2000 – 2010 2WD/4WD 8-LUG 32" 33" 33"
SILVERADO 2500HD 2000 – 2010 2WD/4WD 8-LUG 32" 33" 33"
SILVERADO 2500HD 2011 – 2023 4WD 32" 33" 33"
SILVERADO 3500HD 2000 – 2010 2WD/4WD 8-LUG 32" 33" 33"
SILVERADO 3500 HD 2011 – 2023 4WD 32" 33" 33"
TAHOE 1995 – 1999 2WD 6-LUG 32" 33"** 33"
TAHOE 1995 – 1999 4WD 6-LUG 32" 33"** 33"
TAHOE 2000 – 2006 4WD 32" 33" 33"
TAHOE 2007 – 2023 4WD 6-LUG 32" 33"** 33"
SUBURBAN 1500 1992 – 1999 2WD 6-LUG 31" 32" 32"
SUBURBAN 1500 1992 – 1999 4WD 6-LUG 31" 32" 32"
SUBURBAN 1500 2000 – 2006 4WD 32" 33" 33"
SUBURBAN 1500 2007 – 2023 4WD 6-LUG 32" 33"** 33"
SUBURBAN 2500 1992 – 1999 2WD/4WD 6-LUG 31" 32" 32"
SUBURBAN 2500 2000 – 2013 2WD/4WD 6-LUG 32" 33"** 33"
AVALANCHE 1500 2000 – 2006 4WD 32" 33" 33"
AVALANCHE 1500 2007 – 2013 4WD 6-LUG 32" 33"** 33"
AVALANCHE 2500 2001 – 2011 2WD/4WD 8-LUG 32" 33" 33"
Dodge
RAM 1500 1994 – 2001 4WD 32" 33" 33"
RAM 1500 2002 – 2005 4WD 33" 35" 35"
RAM 1500 2002 – 2008 2WD 33" 35" 35"
RAM 1500 2006 – 2022 4WD 33" 35" 35"
RAM 1500 2009 – 2020 2WD/4WD 33" 35" 35"
RAM 2500 1994 – 2013 2WD/4WD 32" 33" 33"
RAM 3500 1994 – 2013 2WD/4WD 32" 33" 33"
DAKOTA 1986 – 2004 2WD 32" 33"** 33"
DAKOTA 1987 – 2004 4WD 32" 33"** 33"
DAKOTA 1992 – 2002 2WD/4WD 32" 33"** 33"
DAKOTA 2005 – 2011 2WD/4WD 32" 33"** 33"
Ford
EXPEDITION 1997 – 2002 2WD 32" 33" 33"
EXPEDITION 1997 – 2002 4WD 32" 33" 33"
EXPEDITION 2003 – 2017 2WD/4WD 33" 34" 34"
EXPLORER 1991 – 1994 2WD 32" 33"** 33"
EXPLORER 1991 – 2006 4WD 32" 33"** 33"
EXPLORER 2006 – 2010 2WD/4WD 32" 33"** 33"
BRONCO 1980 – 1996 2WD 32" 33"** 33"
BRONCO 1980 – 1996 4WD 32" 33"** 33"
BRONCO II 1983 – 1996 2WD 32" 33"** 33"
BRONCO II 1983 – 1996 4WD 32" 33"** 33"
RANGER 1983 – 1997 2WD 31" 32"** 32"
RANGER 1983 – 1997 4WD 31" 32" 32"
RANGER 1998 – 2012 2WD/4WD 31" 32" 32"
F150 1981 – 1996 2WD/4WD 32" 33"** 33"
F150 1997 – 2003 2WD/4WD 32" 33" 33"
F150 2004 – 2013 2WD/4WD 33" 35"** 35"
F150 2014 – 2023 2WD/4WD 33" 35"** 35"
F250 SUPER DUTY 1999 – 2004 2WD/4WD 32" 33"* 33"
F350 SUPER DUTY 1999 – 2004 2WD/4WD 32" 33"* 33"
F250 SUPER DUTY 2005 – 2023 4WD 32" 33"* 33"
F350 SUPER DUTY 2005 – 2023 4WD 32" 33"* 33"
GMC
C1500 1988 – 1998 2WD 31" 32" 32"
K1500 1988 – 1999 4WD 31" 32" 32"
SIERRA 1500 1999 – 2007(C) 2WD 32" 33" 33"
SIERRA 1500 1999 – 2007(C) 4WD 6-LUG 32" 33"** 33"
SIERRA 1500 2007(N) – 2023 2WD/4WD 6-LUG 32" 33" 33"
SIERRA 1500 HD 2001 – 2010 2WD/4WD 8-LUG 32" 33" 33"
SIERRA 2500 HD 2000 – 2010 2WD/4WD 8-LUG 32" 33" 33"
SIERRA 2500 HD 2011 – 2019 4WD 32" 33" 33"
SIERRA 3500 HD 2000 – 2010 2WD/4WD 8-LUG 32" 33" 33"
SIERRA 3500 HD 2011 – 2019 4WD 32" 33" 33"
YUKON 1992 – 1999 2WD/4WD 6-LUG 31" 32" 32"
YUKON 2000 – 2006 2WD/4WD 32" 33" 33"
YUKON 2007 – 2023 2WD/4WD 6-LUG 32" 33"** 33"
YUKON XL 2000 – 2006 4WD 32" 33"** 33"
YUKON XL 2007 – 2015 2WD/4WD 6-LUG 32" 33"** 33"
YUKON XL 2500 2000 – 2013 2WD/4WD 6-LUG 32" 33"** 33"
YUKON DENALI 2000 – 2006 4WD 6-LUG 32" 33"** 33"
Hummer
HUMMER H2 2003 – 2010 4WD 8-LUG 33" 35"* ** 35"
HUMMER H3 2006 – 2010 4WD 8-LUG 33" 35"* ** 35"
Nissan
FRONTIER 2005 – 2023 2WD/4WD 31" 32" 32"
ARMADA 2004 – 2015 2WD/4WD 32" 33" 33"
TITAN 2004 – 202 2WD/4WD 32" 33" 33"
Toyota
TUNDRA 1999 – 2006 2WD/4WD 32" 33" 33"
TUNDRA 2007 – 2023 2WD/4WD 33" 35" 35"
TACOMA 1995 – 2004 2WD/4WD 6-LUG 31" 32" 32"
TACOMA 2005 – 2023 2WD/4WD 6-LUG 32" 33" 33"
FJ CRUISER 2007 – 2015 2WD/4WD 32" 33" 33"
4RUNNER 1990 – 1995 4WD 32" 33" 33"
4RUNNER 1996 – 2002 2WD/4WD 32" 33" 33"
4RUNNER 2003 – 2023 2WD/4WD 32" 33" 33"
IFS PICKUP 1986 – 1995 4WD 31" 32" 32"
IFS T-100 1993 – 1998 4WD 31" 32" 32"
SEQUOIA 2000 – 2007 2WD/4WD 32" 33" 33"
SEQUOIA 2008 – 2023 2WD/4WD 32" 33" 33"
Wheel Offset Chart

Installing a wheel with less rear of wheel backspacing than the factory wheel results in the wheel sticking out further than the stock wheel did.

WHEEL WIDTH

BACK SPACE 3.25’ 3.5’ 3.75’ 4’ 4.25’ 4.5’ 5’ 5.25’ 5.5’ 5.75’ 6’
5.5’ 0 6 12 19 25 32 44 52 57 63 69
6 -6.4 0 6 12 19 25 38 44 51 57 63
6.5’ -12 -6 0 6 12 19 32 38 44 51 57
7’ -19 -12 -6 0 6 12 25 32 38 44 51
8’ -32 -25 -19 -12 -6 0 12 19 25 32 38
8.5’ -38 -32 -25 -19 -12 -6 6 12 19 25 32
9’ -44 -38 -32 -25 -19 -12 0 6 12 19 25
9.5’ -51 -44 -38 -32 -25 -19 -6 0 6 12 19
10’ -57 -51 -44 -38 -32 -25 -12 -6 0 6 12
10.5’ -63 -57 -51 -44 -38 -32 -19 -12 -6 0 6
11’ -69 -63 -57 -51 -44 -38 -25 -19 -12 -6 0
12’ - - -69 -63 -57 -51 -38 -32 -25 -19 -6
