2004-2022* Ford F-150 4WD Full Suspension Lift Kit | Includes US Patent Pending Rear Lift Blocks with Built-In Bump Stop Landing Plates
Sold out.

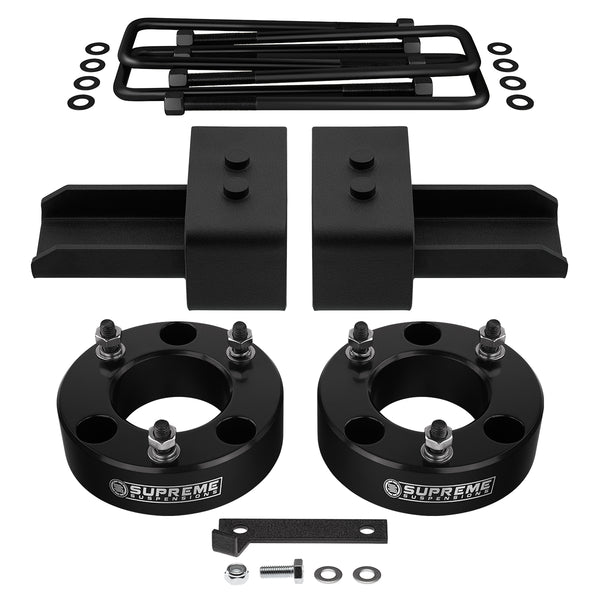

Description:
- Includes 2 Front T6 Billet Aluminum Lift Spacers
- Includes 2 Rear High-Strength Steel Lift Blocks
- Includes 4 Premium Electrostatic Powder Coated U-Bolts
- Includes 1 Brake Line Relocation Bracket
- High-Strength Installation Hardware
- Installation Instructions
New Style Lift Blocks Benefis
- Constructed With 3/4 Dual Pins Specific For The F-150 Models
- Increase Ground Clearance & Install Larger Custom Rims & Tires
- Built-In Bump Stop Landing Plates To Maintain Proper Suspension Travel & Geometry
- Manufactured With Build-in Taper To Correct Pinion Angle And Reach Stock Ride Quality
- Includes One Brake Line Relocation Bracket to Secure Stock Lines Firmly in Place
Notes
- Does NOT fit 2004 Heritage model.
- 3" & 3.5" Front Spacers are NOT compatible with FX4, FX4 Based models, or any 2009+ models.
- 4WD Models come with 1.5" Rear Factory Blocks Pre-Installed which must be removed before installing our lift kit. Our Lift Blocks are designed to replace the 1.5" OEM Blocks on 4WD models and help you achieve the advertised additional rear lift.
Please check out our installation video:
We are proud to offer you our High End Leveling Lift Kit are made out of Aluminum Components and Steel. Front Spacers are precision CNC machined from T6 Aircraft Aluminum, then Anodized for a superior corrosion resistant finish. The SOLID single-piece construction ensures extreme compression resistance, while still being light-weight and resistant to typical corrosion associated with off-roading.
For lifting the rear end of your F-150, we have included our US Patent Pending HD Structure Steel Blocks. Using Heavy Duty GMAW Seam and Fillet Welding Processes we machined each lift block from 1-Piece CNC Formed Steel Frame and reinforced it's structure with 1/4" Thick CNC Plasma Cut Support Walls for maximum strength and stability. These Heavy Duty Lift Blocks are fabricated with Built-in Taper and Bump Stop Landing Plates to help maintain proper suspension travel and geometry, as close to factory specification as possible. This eliminates the risk of bottoming out & improves the quality of your ride while protecting your vehicle’s suspension. LAB Tests have shown these blocks can withstand an astonishing load of almost 60,000 lbs with no yielding or deformation observed!
We complete this kit with our ISO 9001 certified and stamped U-bolts. These High-Strength Steel U-Bolts are bent & threaded to exact specifications, and finished with an Electrostatic Powder Coating to ensure the maximum level of protection and corrosion resistance. Especially engineered for off-road and heavy duty applications, these U-bolts will restore the clamping force on your spring assembly, maximizing safety and ensuring that you get the most out of your rear lift.
Note: Please be sure remove factory blocks before installing this lift kit, as it is illegal to stack rear blocks. An alignment is always recommended after altering the height of your vehicle.
